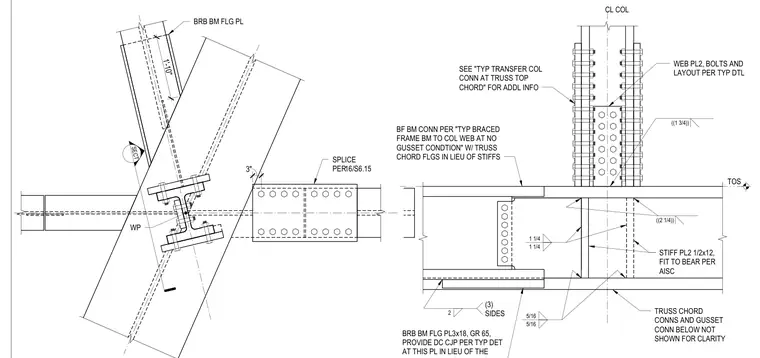

This structural steel connection features a braced frame beam framing into a column web with truss chord flanges acting in lieu of traditional stiffeners. A stiffener plate measuring 1/2 inch by 12 inches is fitted to bear per AISC standards. Grade 65 buckled-restrained brace beam flange plates measuring 3 by 18 inches connect with complete joint penetration welds on three sides. Web plates and bolt layouts match standard details at the column centerline. Splice connections and additional framing members are detailed with specific plate sizes and weld symbols.
SECT BRB BM FLG PL SPLICE PER 16/S6.15 1'-10" 3" WP WEB PL2, BOLTS AND LAYOUT PER TYP DTL CL COL ((1 3/4)) SEE "TYP TRANSFER COL CONN AT TRUSS TOP CHORD" FOR ADDL INFO BF BM CONN PER "TYP BRACED FRAME BM TO COL WEB AT NO GUSSET CONDTION" W/ TRUSS CHORD FLGS IN LIEU OF STIFFS ((2 1/4)) STIFF PL2 1/2x12, FIT TO BEAR PER AISC 1 1/4 1 1/4 5/16 5/16 (3) SIDES 2 BRB BM FLG PL3x18, GR 65, PROVIDE DC CJP PER TYP DET AT THIS PL IN LIEU OF THE TRUSS CHORD CONNS AND GUSSET CONN BELOW NOT SHOWN FOR CLARITY TOS
