Structural · S-H92YA

Metal Deck Reinforcement and Concrete Fill

Materials

Elements

About this detail

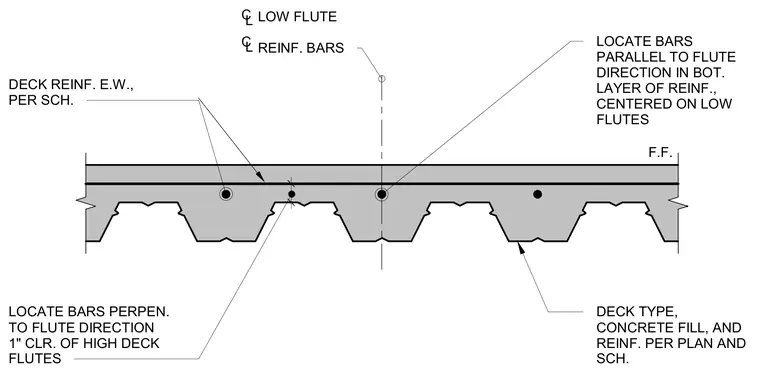

Concrete fill and reinforcing bars are placed over a corrugated metal deck profile with specific clearances. Reinforcing bars running parallel to the flute direction are centered in the bottom layer of reinforcement over the low flutes. Bars perpendicular to the flute direction maintain a one-inch clearance from the high deck flutes. Deck type, concrete fill depth, and total reinforcement are governed by the structural plans and schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
