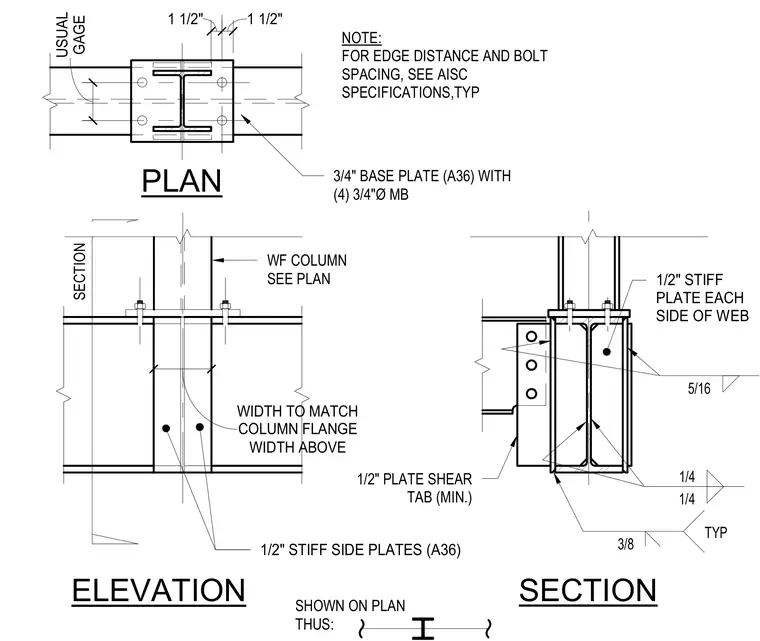

A wide-flange column connects to a supporting assembly via a three-quarter-inch A36 steel base plate secured by four three-quarter-inch anchor bolts. One-half-inch A36 stiffener plates are welded to each side of the web with fillet welds sized per plan. A one-half-inch minimum plate shear tab is welded to the column flange with a five-sixteenth-inch fillet weld to receive framing members. Edge distance and bolt spacing conform to AISC specifications.
SECTION SHOWN ON PLAN THUS: SECTION PLAN ELEVATION WF COLUMN SEE PLAN NOTE: FOR EDGE DISTANCE AND BOLT SPACING, SEE AISC SPECIFICATIONS,TYP 1/2" STIFF SIDE PLATES (A36) 1/2" PLATE SHEAR TAB (MIN.) 3/4" BASE PLATE (A36) WITH (4) 3/4"Ø MB 1/2" STIFF PLATE EACH SIDE OF WEB 3/8 TYP 1/4 1/4 5/16 WIDTH ABOVE WIDTH TO MATCH COLUMN FLANGE 1 1/2" 1 1/2" GAGE USUAL
