Steel Joist Bearing at Tilt-Up Concrete Panel Joint

Materials

Concrete Steel

Elements

Beams

Connections

Bolted Connection Expansion / Slip Connection

About this detail

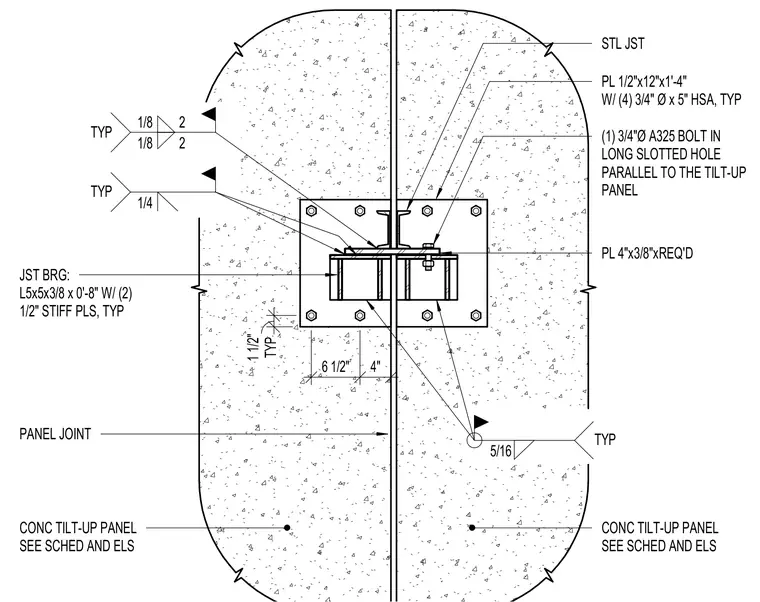

Steel joist bearing connection at a concrete tilt-up panel joint featuring embedded steel plates, heavy stiffener angles, and a slip-slotted bolt connection. The steel joist bears onto a 1/2-inch by 12-inch by 1-foot 4-inch steel plate embedded in the concrete tilt-up panel with four 3/4-inch diameter by 5-inch heavy stud anchors. A joist bearing assembly comprising an L5x5x3/8 angle, 8 inches long, with two 1/2-inch stiffener plates supports the joist. A 4-inch by 3/8-inch plate connects via one 3/4-inch diameter A325 bolt in a long slotted hole parallel to the tilt-up panel, providing slip movement at the panel joint.
