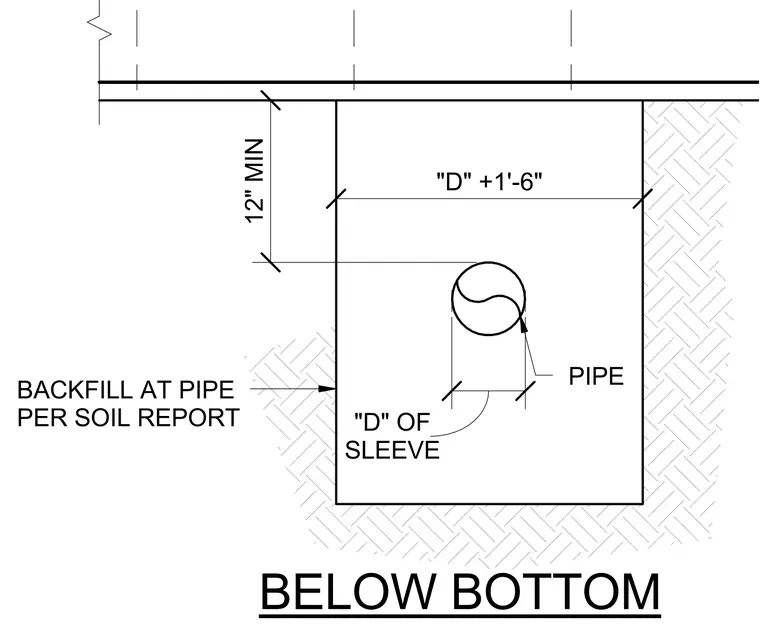

A pipe penetrates a concrete grade beam or footing surrounded by soil backfill compacted per the geotechnical report. The pipe is centered within a sleeve sized at the pipe outer diameter plus one foot six inches. A minimum clearance of twelve inches is maintained from the bottom of the foundation element to the bottom of the pipe.
BELOW BOTTOM PIPE 12" MIN "D" +1'-6" SLEEVE "D" OF BACKFILL AT PIPE PER SOIL REPORT
