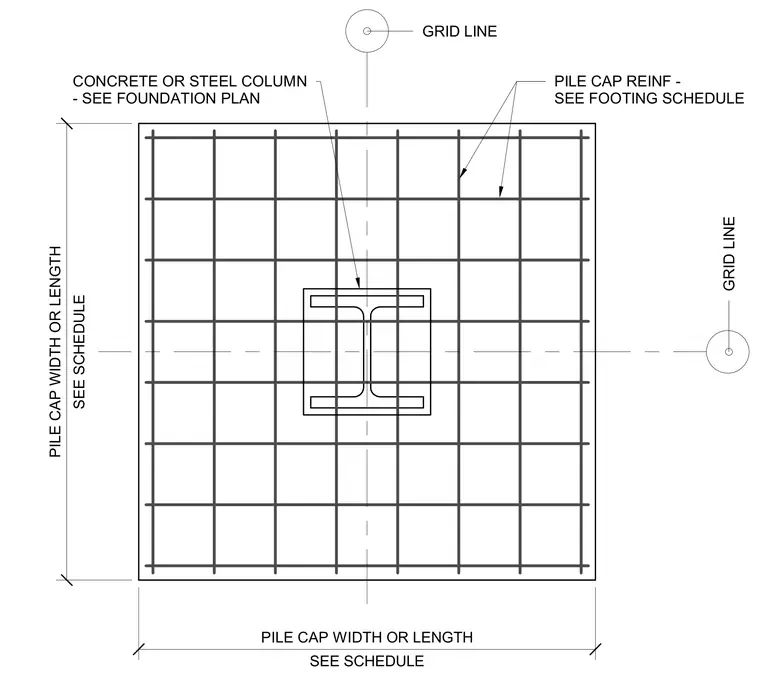

A pile cap supports a concrete or steel column located at the intersection of structural grid lines. The pile cap reinforcement layout and dimensions are sized per the footing schedule and foundation plan. The column is centered on the pile cap assembly.
GRID LINE GRID LINE PILE CAP REINF - SEE FOOTING SCHEDULE CONCRETE OR STEEL COLUMN - SEE FOUNDATION PLAN SEE SCHEDULE PILE CAP WIDTH OR LENGTH SEE SCHEDULE PILE CAP WIDTH OR LENGTH
