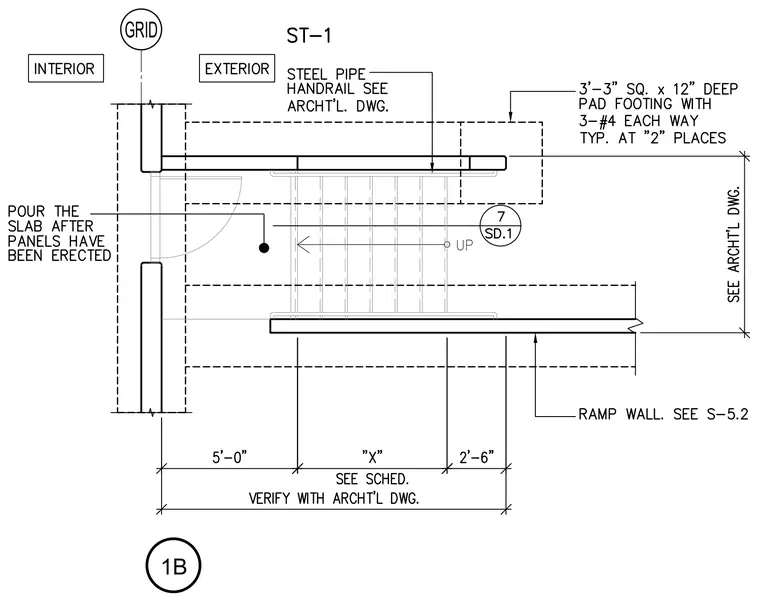

A concrete ramp wall connects to a three-foot-three-inch square by twelve-inch deep pad footing reinforced with three number four bars each way in two places. A steel pipe handrail is located per architectural drawings. The slab is poured after the precast panels have been erected.
