An open web steel joist and a seven-and-a-half-inch deep steel girder bear onto a steel column situated behind a concrete tilt-up wall panel. The column is capped with a steel plate sized per the column schedule and anchored to the concrete panel with an embed plate measuring one-half by twelve inches by one foot two inches using four three-quarter-inch diameter by five-inch head stud anchors at nine-inch gauge. A continuous L3x3x1/4 angle provides deck bearing, while a short L3x3x1/4 angle supports the joist. A steel girder stabilizer plate measuring six by three-quarters by six inches with a thirteen-sixteenths-inch diameter hole is provided at the joists, with bottom chords left un-welded to the stabilizer plate unless noted otherwise. Three-sixteenths-inch and one-quarter-inch fillet welds secure the structural steel connections as indicated by standard welding symbols. Erection of the girder bearing end utilizes two three-quarter-inch diameter bolts.

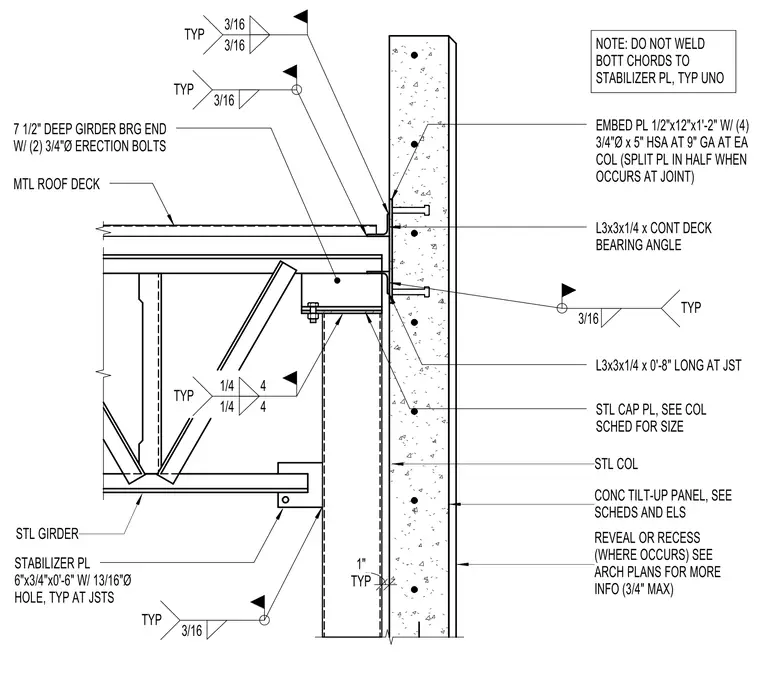

CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) TYP 1" STL CAP PL, SEE COL SCHED FOR SIZE L3x3x1/4 x CONT DECK BEARING ANGLE EMBED PL 1/2"x12"x1'-2" W/ (4) 3/4"Ø x 5" HSA AT 9" GA AT EA COL (SPLIT PL IN HALF WHEN OCCURS AT JOINT) L3x3x1/4 x 0'-8" LONG AT JST STL COL NOTE: DO NOT WELD BOTT CHORDS TO STABILIZER PL, TYP UNO STL GIRDER STABILIZER PL 6"x3/4"x0'-6" W/ 13/16"Ø HOLE, TYP AT JSTS TYP 3/16 TYP 3/16 3/16 TYP 3/16 MTL ROOF DECK 7 1/2" DEEP GIRDER BRG END W/ (2) 3/4"Ø ERECTION BOLTS TYP 3/16 1/4 TYP 1/4 4 4
