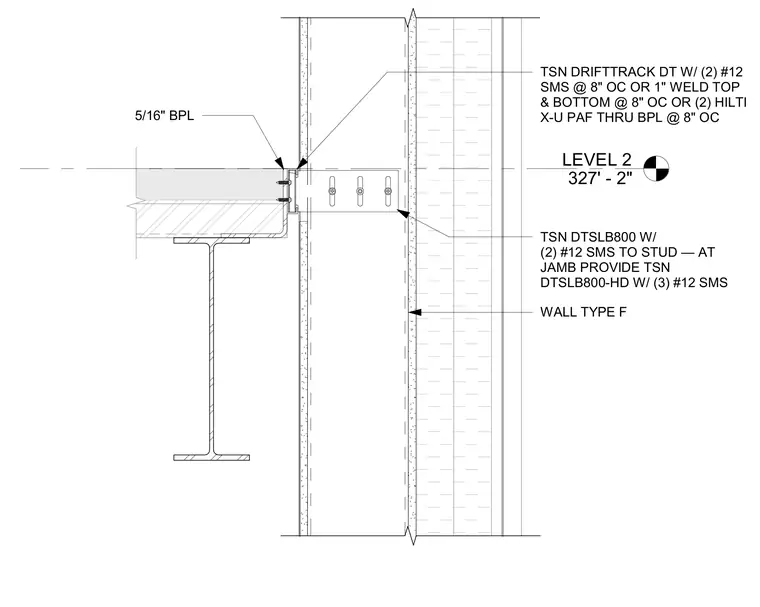

A Tracks-Systems-Nordic drift track with a five-sixteenth inch base plate connects the top of Wall Type F to the floor assembly at Level 2. The drift track attaches with two number twelve self-tapping metal screws at eight inches on center, a one-inch weld top and bottom at eight inches on center, or two Hilti X-U powder-actuated fasteners through the base plate at eight inches on center. A TSN DTSLB800 clip connects with two number twelve self-tapping metal screws to the stud, while jamb conditions receive a heavy-duty TSN DTSLB800-HD clip with three number twelve self-tapping metal screws.
LEVEL 2 327' - 2" TSN DTSLB800 W/ (2) #12 SMS TO STUD — AT JAMB PROVIDE TSN DTSLB800-HD W/ (3) #12 SMS TSN DRIFTTRACK DT W/ (2) #12 SMS @ 8" OC OR 1" WELD TOP & BOTTOM @ 8" OC OR (2) HILTI X-U PAF THRU BPL @ 8" OC WALL TYPE F 5/16" BPL
