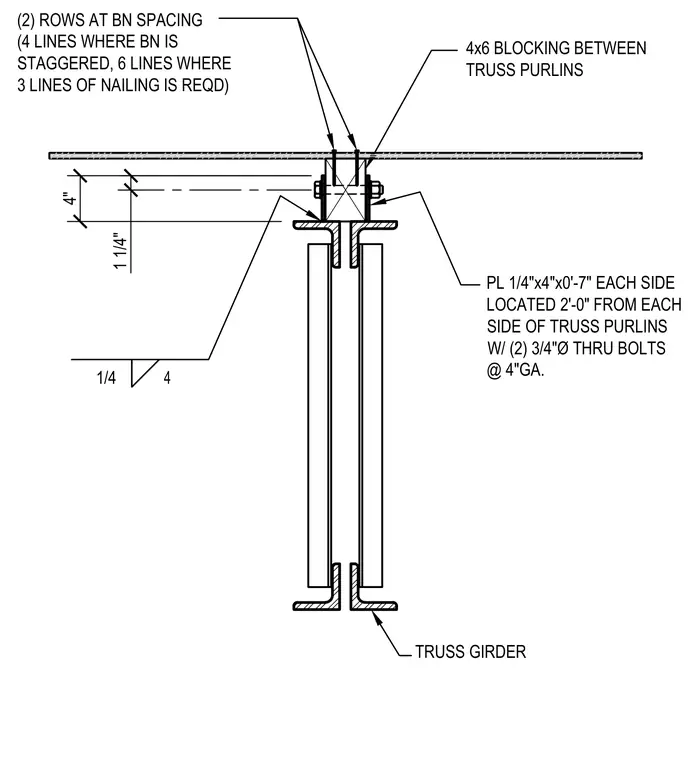

This structural detail shows wood blocking and steel connector plates joining truss purlins to a truss girder. Four-by-six wood blocking is installed between the truss purlins and secured with two rows of framing nails at specified spacing. Steel plates measuring 1/4 inch by 4 inches by 0 feet 7 inches are placed on each side, located 2 feet from each side of the truss purlins. Two 3/4-inch-diameter through bolts with a 4-inch gauge connect the assembly through the blocking and plates.
TRUSS GIRDER 4x6 BLOCKING BETWEEN TRUSS PURLINS PL 1/4"x4"x0'-7" EACH SIDE LOCATED 2'-0" FROM EACH SIDE OF TRUSS PURLINS W/ (2) 3/4"Ø THRU BOLTS @ 4"GA. 4" 1 1/4" 1/4 4 (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
