Domestic Water Booster Pump Schematic Diagram

Elements

About this detail

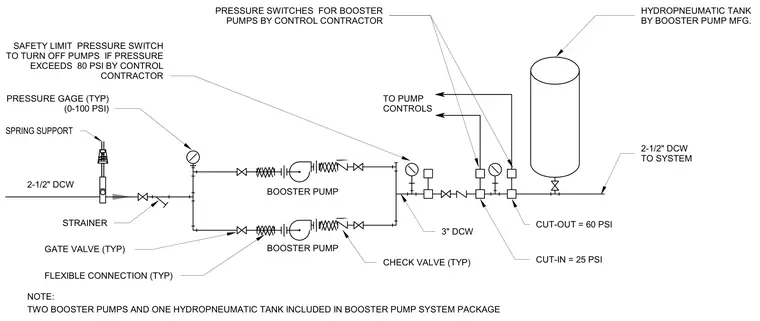

Two booster pumps and one hydropneumatic tank are integrated into a packaged booster pump system connected to a domestic cold water supply. The layout incorporates a strainer, gate valves, flexible connections, and check valves on the piping network. Pressure gauges with a zero to one hundred pounds per square inch range monitor the system, alongside pressure switches set with a cut-in at twenty-five pounds per square inch and a cut-out at sixty pounds per square inch. A safety limit pressure switch wired by the control contractor shuts off the pumps if pressure exceeds eighty pounds per square inch. Spring supports suspend the piping assembly as indicated, delivering water through two-and-a-half-inch domestic cold water lines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
