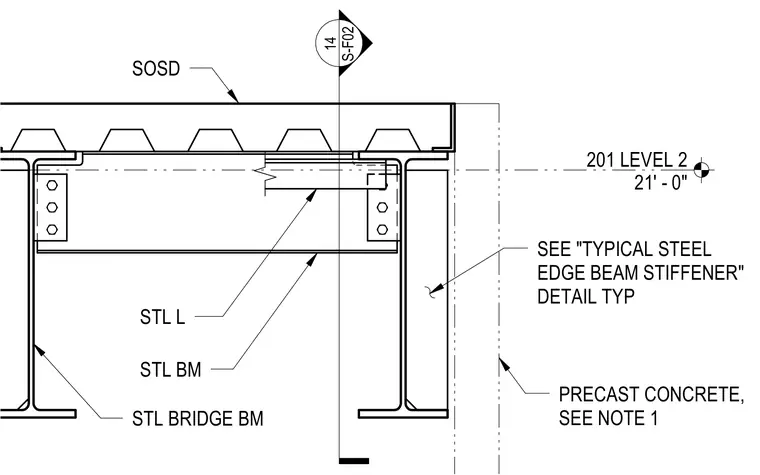

A steel bridge beam and steel edge beam frame beneath a slab on metal deck, positioned adjacent to a precast concrete panel assembly. Steel angles connect the framing members with bolted shear tabs. Level 2 elevation is established at twenty-one feet and zero inches. Edge beam stiffeners are referenced for typical conditions.
S-F02 14 201 LEVEL 2 21' - 0" SOSD SEE "TYPICAL STEEL EDGE BEAM STIFFENER" DETAIL TYP PRECAST CONCRETE, SEE NOTE 1 STL L STL BM STL BRIDGE BM
