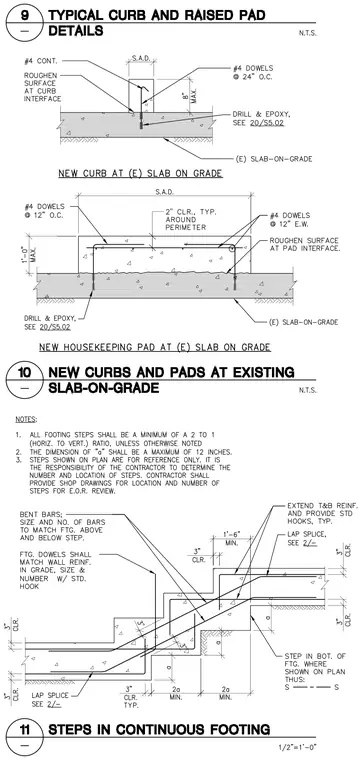

New concrete curbs and housekeeping pads are anchored to existing slab-on-grade using drilled and epoxied reinforcing dowels with roughened interface surfaces. The curb detail incorporates continuous reinforcing bars at the top and vertical dowels spaced at twenty-four inches on center. The housekeeping pad features continuous perimeter bent bars, horizontal dowels spaced at twelve inches on center each way, and a minimum clearance of two inches. Footing step details show continuous concrete footings with lap splices, bent reinforcing bars, standard hooks, and stepped bottom profiles sized per plans.
