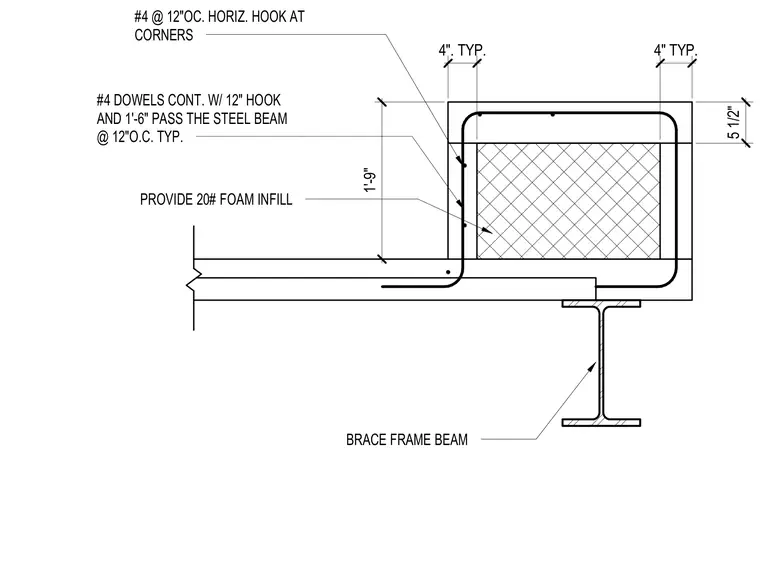

A built-up concrete curb step rests above a structural steel brace frame beam with continuous number four rebar dowels placed at twelve inches on center, featuring a twelve-inch hook and extending one foot six inches past the steel beam. A twenty-pound foam infill is provided inside the concrete profile. Additional number four horizontal hooks at twelve inches on center reinforce the corners.
4". TYP. 1'-9" #4 DOWELS CONT. W/ 12" HOOK AND 1'-6" PASS THE STEEL BEAM @ 12"O.C. TYP. #4 @ 12"OC. HORIZ. HOOK AT CORNERS PROVIDE 20# FOAM INFILL 4" TYP. 5 1/2" BRACE FRAME BEAM
