Structural · S-H79CS

Post-Tensioned Concrete Beam and Column Connection with Stub Column

Materials

Concrete

Elements

Columns Beams Floors / Slabs Arches Expansion / Control Joints Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

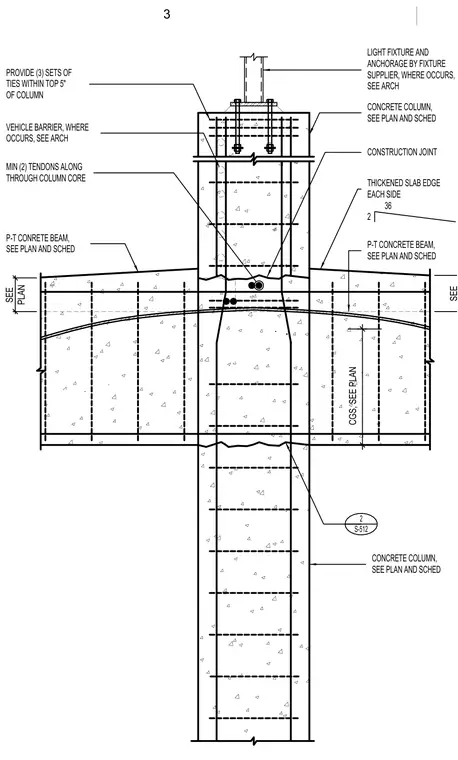

A concrete column supports post-tensioned concrete beams framing into a thickened slab edge with a construction joint located above the beam level. Three sets of ties are provided within the top 5 inches of the column below the stub column connection. A minimum of two tendons run continuously along through the column core. A light fixture and its anchorage are mounted to the top of the stub column per architectural requirements, where applicable. A vehicle barrier is also provided where indicated on architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
