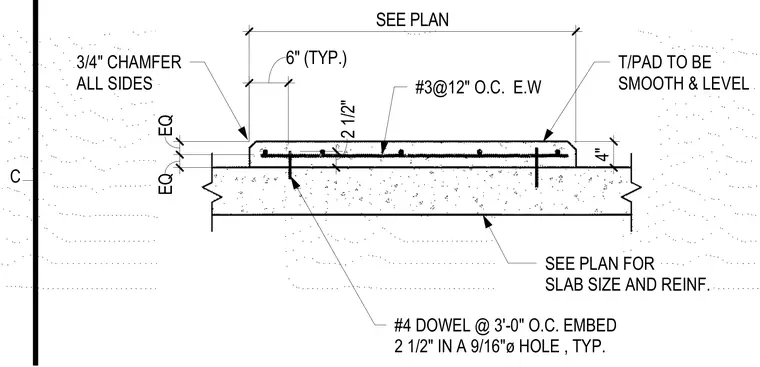

A concrete housekeeping pad is anchored to a structural slab with number four dowels spaced at three feet on center and embedded two and one-half inches into nine-sixteenths-inch diameter holes. The pad features number three reinforcing bars at twelve inches on center each way within a four-inch thickness and has a three-quarter-inch chamfer on all sides. The top of the pad is finished smooth and level, while slab size and reinforcement are sized per plan.
3/4" CHAMFER ALL SIDES #4 DOWEL @ 3'-0" O.C. EMBED 2 1/2" IN A 9/16"ø HOLE , TYP. #3@12" O.C. E.W T/PAD TO BE SMOOTH & LEVEL SEE PLAN FOR SLAB SIZE AND REINF. 2 1/2" 6" (TYP.) SEE PLAN EQ EQ 4" C
