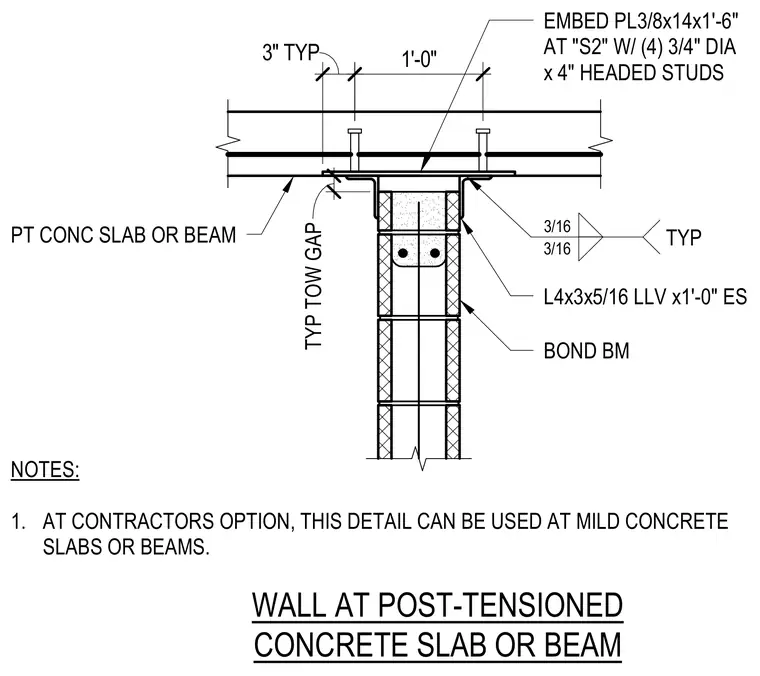

An embed plate measuring three-eighths by fourteen inches by one foot six inches with four three-quarter-inch diameter by four-inch headed studs is cast into the underside of the post-tensioned concrete slab or beam. Two L4x3x5/16 structural angles with long legs vertical and a length of one foot each are welded to the embed plate with three-sixteenths-inch fillet welds on each side. The structural angles tie into a bond beam at the top of the masonry wall, maintaining a typical top-of-wall gap. At the contractor's option, this detail can also be used at mild reinforced concrete slabs or beams.
L4x3x5/16 LLV x1'-0" ES BOND BM EMBED PL3/8x14x1'-6" AT "S2" W/ (4) 3/4" DIA x 4" HEADED STUDS WALL AT POST-TENSIONED CONCRETE SLAB OR BEAM 3" TYP TYP 3/16 3/16 1 1/2" PT CONC SLAB OR BEAM TYP TOW GAP NOTES: 1. AT CONTRACTORS OPTION, THIS DETAIL CAN BE USED AT MILD CONCRETE SLABS OR BEAMS. 1'-0"
