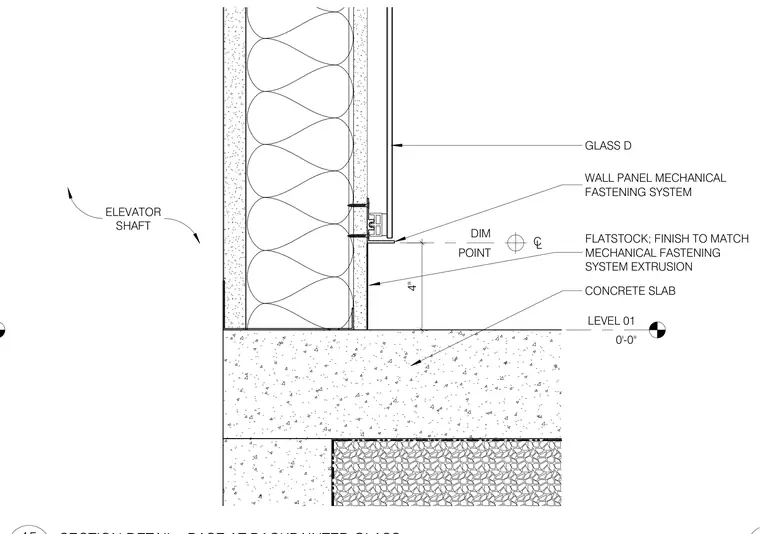

A backpainted glass panel terminates at Level 01 above a concrete slab, secured by a mechanical fastening system extrusion attached to the concrete wall. A matching flatstock trim piece finishes the bottom of the assembly at a dimensioned offset from the slab. The wall construction includes insulation and framing adjacent to the elevator shaft.
LEVEL 01 0'-0" CONCRETE SLAB WALL PANEL MECHANICAL FASTENING SYSTEM GLASS D FLATSTOCK; FINISH TO MATCH MECHANICAL FASTENING SYSTEM EXTRUSION 4" ELEVATOR SHAFT CL DIM POINT
