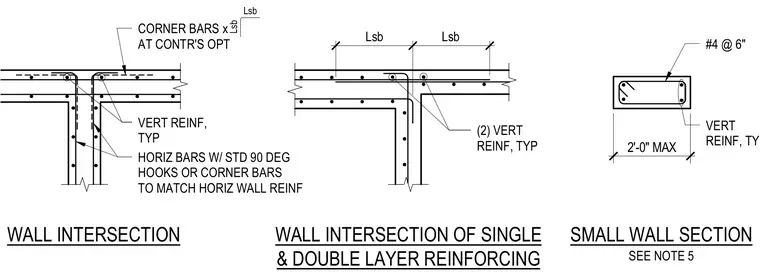

Concrete wall intersections detail the transition between single and double layers of vertical reinforcing and horizontal bars. Horizontal bars feature standard 90-degree hooks or optional corner bars matching the horizontal wall reinforcement layout. Lap splice lengths are dimensioned as Lsb. A small wall section details typical number four vertical reinforcing spaced at six inches across a maximum two-foot width.
WALL INTERSECTION OF SINGLE & DOUBLE LAYER REINFORCING SMALL WALL SECTION WALL INTERSECTION (2) VERT REINF, TYP #4 @ 6" VERT REINF, TYP 24" 24" VERT REINF, TYP 2'-0" MAX Lsb Lsb SEE NOTE 5 HORIZ BARS W/ STD 90 DEG HOOKS OR CORNER BARS TO MATCH HORIZ WALL REINF CORNER BARS x AT CONTR'S OPT Lsb Lsb
