Typical Steel Deck Attachment Detail

Materials

Steel Metal (misc.)

Elements

Beams Decks Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Deck Attachment

About this detail

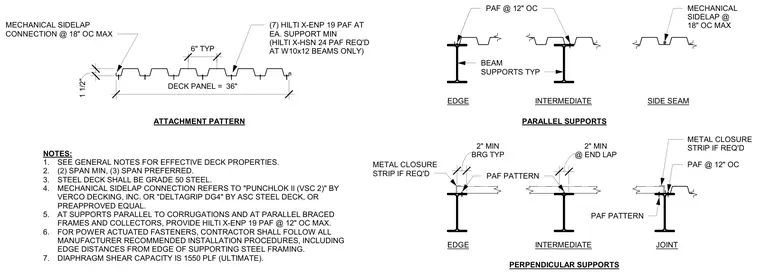

Grade 50 steel deck bearing on structural steel framing members is secured by power-actuated fasteners to parallel and perpendicular supports, with specific fastener requirements for W10x12 beams and braced frame locations. Mechanical sidelap connections such as PunchLok II or Deltagrip DG4 are specified at eighteen inches on center maximum along the side seams. Metal closure strips and bearing lengths are provided at support conditions to meet an ultimate diaphragm shear capacity of 1550 plf.
