Adjacent panels are spaced with a one-half inch gap between them and covered with sheathing. A Simpson LDSS48 strap fastens across the joint using zero-point-one-four-eight by two-and-one-half-inch nails spaced at four inches on center.

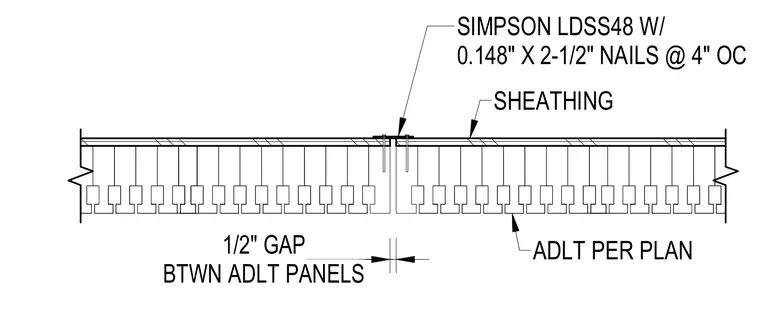

BTWN ADLT PANELS 1/2" GAP ADLT PER PLAN SHEATHING SIMPSON LDSS48 W/ 0.148" X 2-1/2" NAILS @ 4" OC
