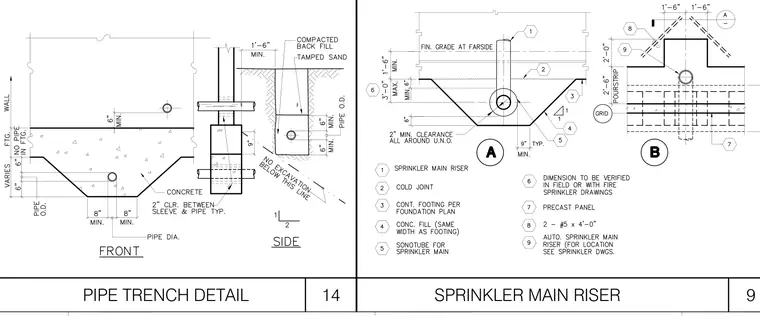

A sprinkler main riser passes through a concrete pipe trench and foundation assembly. The sprinkler main riser is centered within a sonotube and concrete fill, maintaining two inches of minimum clearance all around. A continuous footing supports the assembly, featuring a cold joint and compacted backfill over tamped sand. Precast panels and reinforcing bars integrate into the structural wall configuration above.
