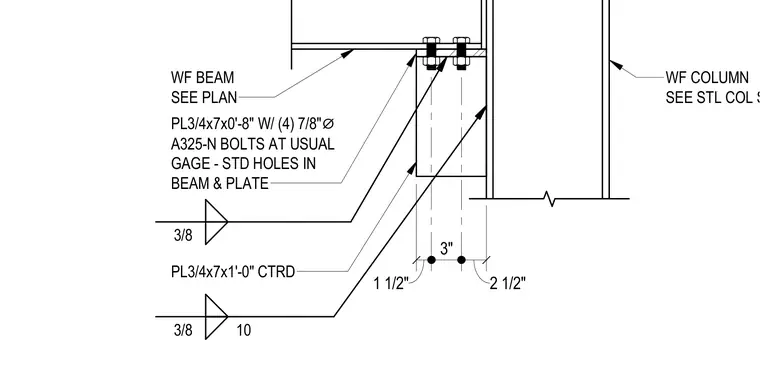

A wide-flange beam is supported by a seat connection welded to a wide-flange steel column. The seat assembly consists of a 3/4-inch by 7-inch by 1-foot-0-inch plate centered on the column face with a 3/8-inch fillet weld. A 3/4-inch by 7-inch by 0-foot-8-inch top plate connects the beam flange using four 7/8-inch diameter A325-N bolts with standard holes in both the beam and the plate at the usual gauge.
1 1/2" 3" 2 1/2" WF BEAM SEE PLAN PL3/4x7x0'-8" W/ (4) 7/8" ⌀ A325-N BOLTS AT USUAL GAGE - STD HOLES IN BEAM & PLATE 3/8 PL3/4x7x1'-0" CTRD 3/8 10 WF COLUMN SEE STL COL SCHED
