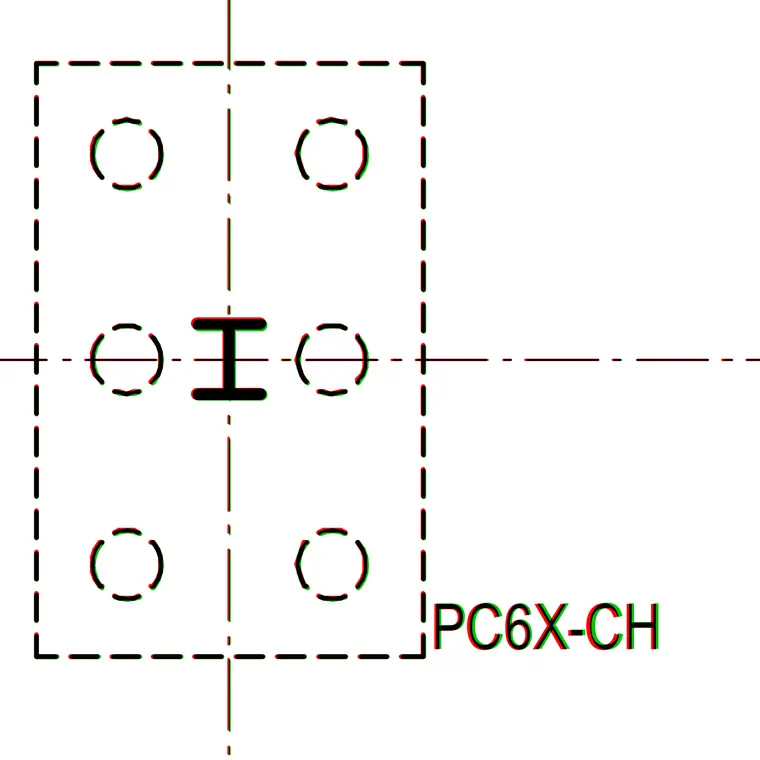

A precast concrete member connects via a base plate outlined with dashed lines and secured with six anchor bolts arranged symmetrically around the structural section. Centerlines intersect at the midpoint of the steel shape, aligning the structural elements. The assembly detail provides positioning for precast concrete column connections.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
