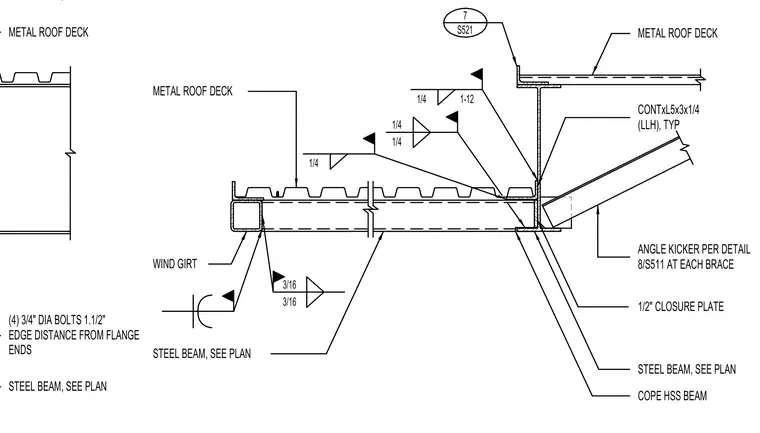

A structural steel beam supports a metal roof deck with a wind girt integrated into the assembly. An angle kicker brace consisting of a continuous angle size L5x3x1/4 connects to the steel beam web with a one-half-inch closure plate. Fillet welds of various sizes including three-sixteenths and one-quarter inch secure the framing members and connection plates. A separate bolted connection detail uses four three-quarter-inch diameter bolts with one-and-a-half-inch edge distances from the flange ends of the steel beam. Metal roof deck conditions continue across the steel members as sized per structural plans.
METAL ROOF DECK STEEL BEAM, SEE PLAN (4) 3/4" DIA BOLTS 1.1/2" EDGE DISTANCE FROM FLANGE ENDS STEEL BEAM, SEE PLAN METAL ROOF DECK WIND GIRT STEEL BEAM, SEE PLAN 1/2" CLOSURE PLATE ANGLE KICKER PER DETAIL 8/S511 AT EACH BRACE CONTxL5x3x1/4 (LLH), TYP METAL ROOF DECK COPE HSS BEAM STEEL BEAM, SEE PLAN 3/16 3/16 1/4 1/4 1/4 1/4 1-12 7 S521
