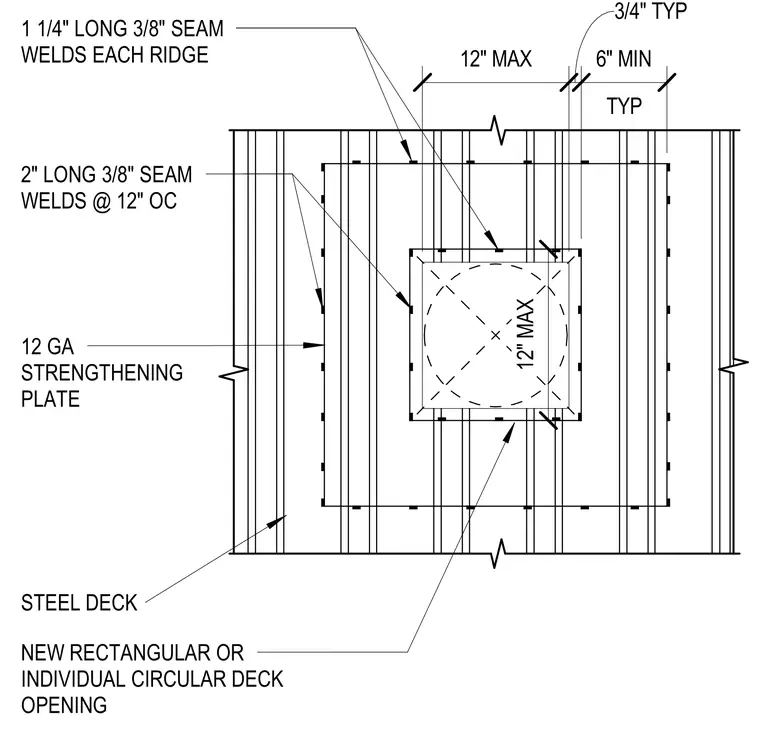

This assembly reinforces rectangular or circular steel deck openings up to 12 inches in diameter or width. A 12-gauge steel strengthening plate is centered over the opening and secured to the steel deck. The plate is attached at each ridge with 1 1/4-inch long, 3/8-inch seam welds. Along the perimeter of the plate, 2-inch long, 3/8-inch seam welds are spaced at 12 inches on center. A minimum 6-inch clearance is maintained from the opening edge to the deck ridge, with a typical 3/4-inch offset for weld placement. These reinforced openings are not intended to support mechanical equipment.
Text on the drawing
12" MAX 3/4" TYP TYP 6" MIN 1 1/4" LONG 3/8" SEAM WELDS EACH RIDGE 2" LONG 3/8" SEAM WELDS @ 12" OC 12 GA STRENGTHENING PLATE STEEL DECK NOTES: 1. FOR HOLES 3" DIAMETER OR SMALLER, RE: 2. THESE REINFORCED OPENINGS ARE NOT INTENDED TO SUPPORT MECHANICAL EQUIPMENT. RE: DETAILS ON S-62104 FOR OPENINGS SUPPORTING MECHANICAL EQUIPMENT. 3. CONTRACTOR SHALL COORDINATE OPENING SIZE AND LOCATIONS WITH MECHANICAL, ELECTRICAL, AND ARCHITECTURAL AND THE APPROPRIATE SUBCONTRACTORS. A DECK OPENINGS UP TO 12" 4/S-62000 12" MAX NEW RECTANGULAR OR INDIVIDUAL CIRCULAR DECK OPENING
