An L3x3x3/8 diagonal brace connects to the top flange of the nearest steel beam supporting a concrete slab over metal floor deck. A 1/4 inch by 6 inch by 0 foot 6 inch weld plate is attached at the diagonal brace with a three-sixteenths-inch fillet weld. The contractor may substitute the field weld with a bolted connection using two seven-eighths-inch-diameter A325 bolts. The brace member is skewed as required to meet the beam top flange.

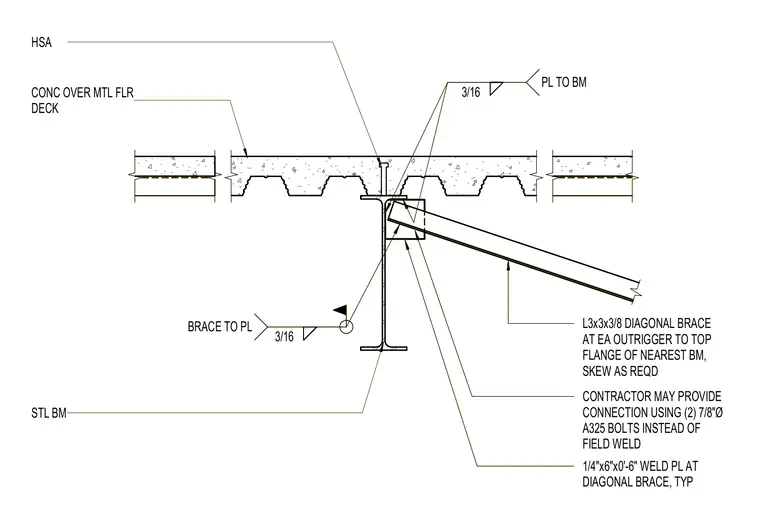

1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x3/8 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM, SKEW AS REQD STL BM CONC OVER MTL FLR DECK HSA CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 BRACE TO PL 1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x3/8 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM, SKEW AS REQD STL BM CONC OVER MTL FLR DECK HSA CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 BRACE TO PL
