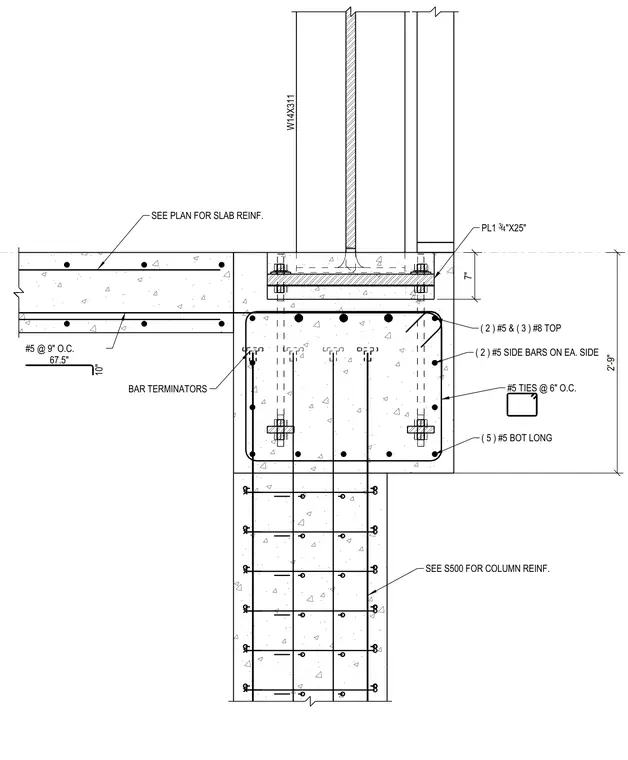

A wide-flange steel beam designated as W14X311 bears onto a reinforced concrete column through a 3/4 inch by 25 inch base plate secured by anchor bolts. The concrete column features a 2-foot 9-inch depth reinforced with number 5 ties spaced at 6 inches on center, number 5 bottom longitudinal bars, number 5 side bars on each side, and a top arrangement of number 5 and number 8 bars. A perimeter concrete slab framing into the column contains slab reinforcing sized per plan. Column reinforcing bar terminators are detailed per sheet S500.
SEE S500 FOR COLUMN REINF. BAR TERMINATORS 7" #5 @ 9" O.C. 67.5" 10" #5 TIES @ 6" O.C. SEE PLAN FOR SLAB REINF. W14X311 ( 5 ) #5 BOT LONG ( 2 ) #5 SIDE BARS ON EA. SIDE ( 2 ) #5 & ( 3 ) #8 TOP PL1 3 4 / "X25" 2'-9"
