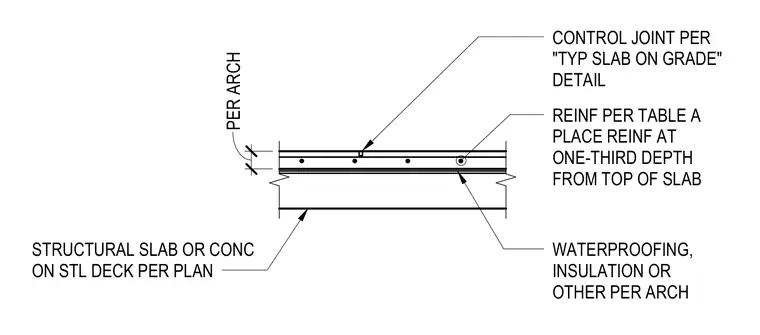

The assembly consists of a structural concrete slab or concrete on a steel deck per plan. Reinforcement is placed at one-third the depth from the top of the slab per table A. Waterproofing, insulation, or other layers are installed per architectural specifications. A control joint is provided per the typical slab-on-grade detail.
STRUCTURAL SLAB OR CONC ON STL DECK PER PLAN WATERPROOFING, INSULATION OR OTHER PER ARCH REINF PER TABLE A PLACE REINF AT ONE-THIRD DEPTH FROM TOP OF SLAB CONTROL JOINT PER "TYP SLAB ON GRADE" DETAIL 4" PER ARCH
