A hollow structural section stair stringer connects to a glued-laminated timber beam using a three-quarter-inch thick steel plate welded to the end of the stringer. Three-eighths-inch thick plates are welded to each side of the hollow structural section stringer with five-sixteenth-inch fillet welds on three sides. Six one-inch diameter A307 bolts pass through the connection, secured with one-quarter-inch square washers on the face of the timber beam. A three-quarter-inch gap is maintained between the stringer end plate and the timber member.

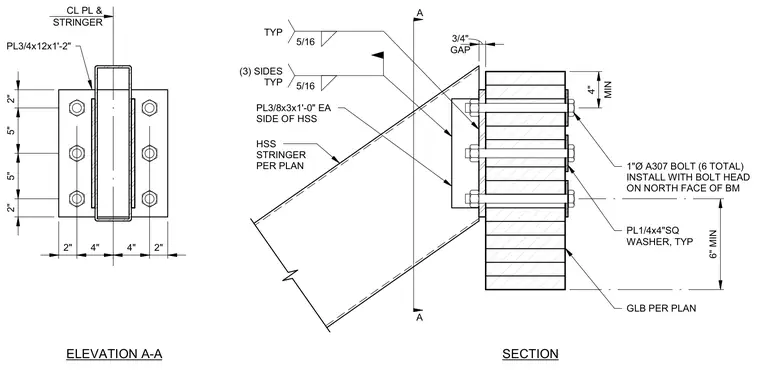

2" 4" 4" 2" 2" 5" 5" 2" GAP 3/4" MIN 4" CL PL & STRINGER ELEVATION A-A SECTION PL3/4x12x1'-2" A A PL3/8x3x1'-0" EA SIDE OF HSS HSS STRINGER PER PLAN 5/16 (3) SIDES TYP 5/16 TYP 1"Ø A307 BOLT (6 TOTAL) INSTALL WITH BOLT HEAD ON NORTH FACE OF BM PL1/4x4"SQ WASHER, TYP GLB PER PLAN 6" MIN
