Pilaster and Column Base Plate at Stem Wall End

Materials

Steel

Elements

Columns Walls Stem Walls Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

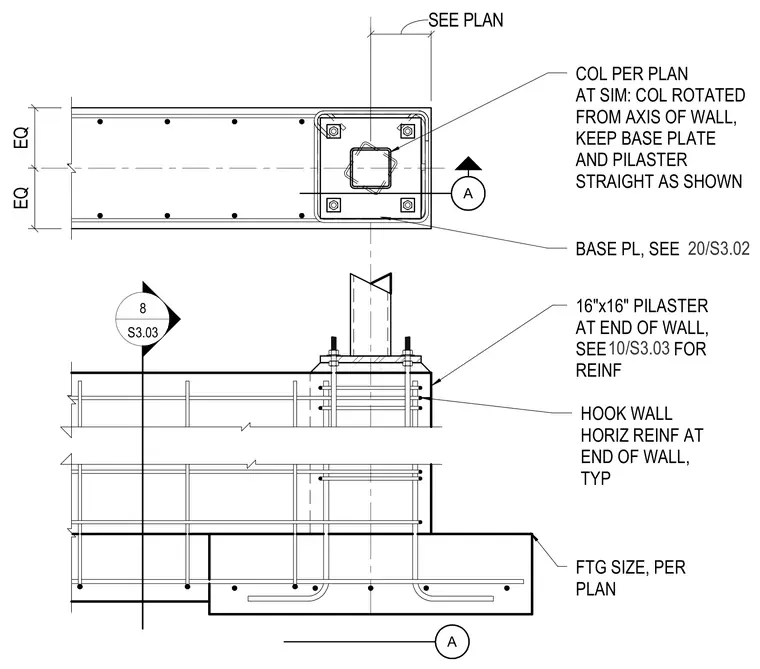

A sixteen-inch by sixteen-inch concrete pilaster is detailed at the end of a stem wall atop a footing sized per plan. A steel column with a base plate bears on the pilaster, anchored with anchor bolts. Horizontal wall reinforcing bars hook around the end of the wall typically, while vertical and tie reinforcing within the pilaster are referenced to sheet S3.03. When the column is rotated from the axis of the wall at similar locations, the base plate and pilaster must be kept straight as shown.
