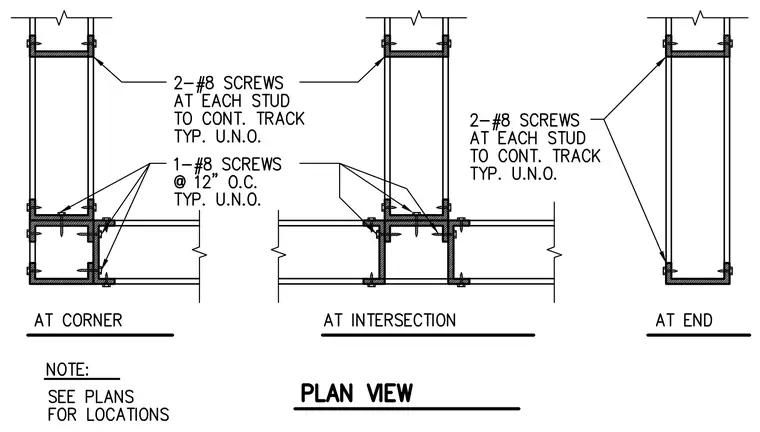

Cold-formed metal studs connect to continuous tracks using two number eight screws at each stud to track connection typically unless noted otherwise. Wall intersections and corners incorporate fastened stud configurations tied with one number eight screw at twelve inches on center typically unless noted otherwise. Locations are verified per the architectural floor plans.
