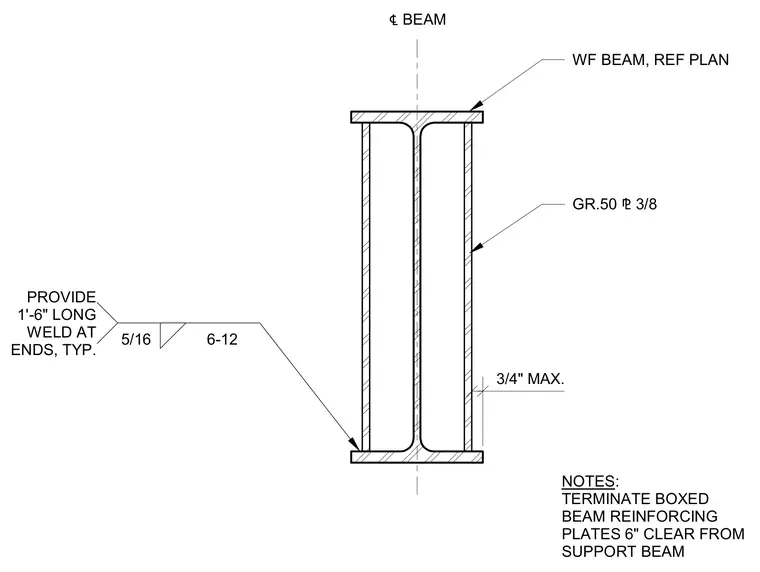

A wide flange beam is reinforced with Grade 50 three-eighths-inch steel plates welded to the web or flanges. A five-sixteenth-inch fillet weld with a six-inch-on-twelve-inch spacing is applied, featuring a one-foot-six-inch long weld at the ends typically. Boxed beam reinforcing plates terminate six inches clear from the support beam, maintaining a maximum three-quarters-inch clearance.
WF BEAM, REF PLAN NOTES: TERMINATE BOXED BEAM REINFORCING PLATES 6" CLEAR FROM SUPPORT BEAM 5/16 6-12 PROVIDE 1'-6" LONG WELD AT ENDS, TYP. GR.50 ⅊ 3/8 3/4" MAX. ℄ BEAM
