Steel beams frame into a structural steel column with welded top and bottom flange plates and bolted web connections. Continuity plates are aligned across the column web matching the larger flange thickness requirement from the connected members. Flange connections are welded with specified weld sizes and backing bars as noted in the schedule. Web connections utilize vertical shear tabs with multiple rows of bolts sized per structural plans.

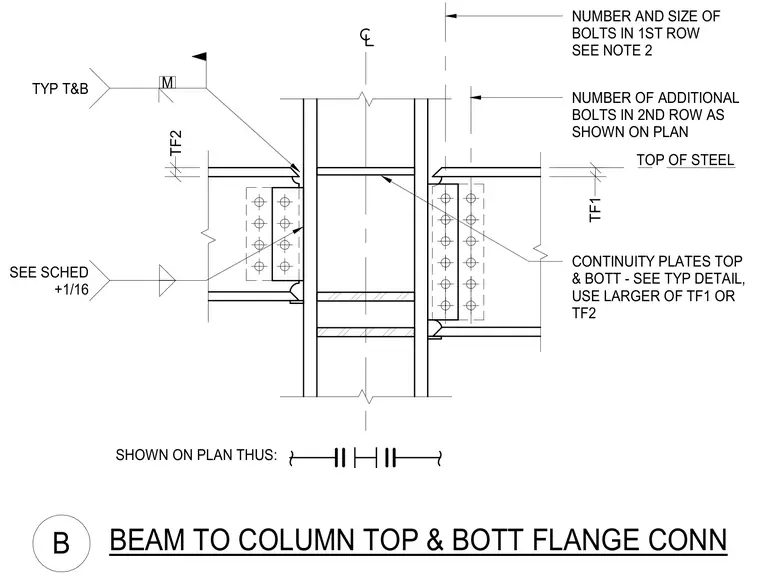

TOP OF STEEL SHOWN ON PLAN THUS: CONTINUITY PLATES TOP & BOTT - SEE TYP DETAIL, USE LARGER OF TF1 OR TF2 TYP T&B M SEE SCHED +1/16 TF1 TF2 NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW AS SHOWN ON PLAN B BEAM TO COLUMN TOP & BOTT FLANGE CONN
