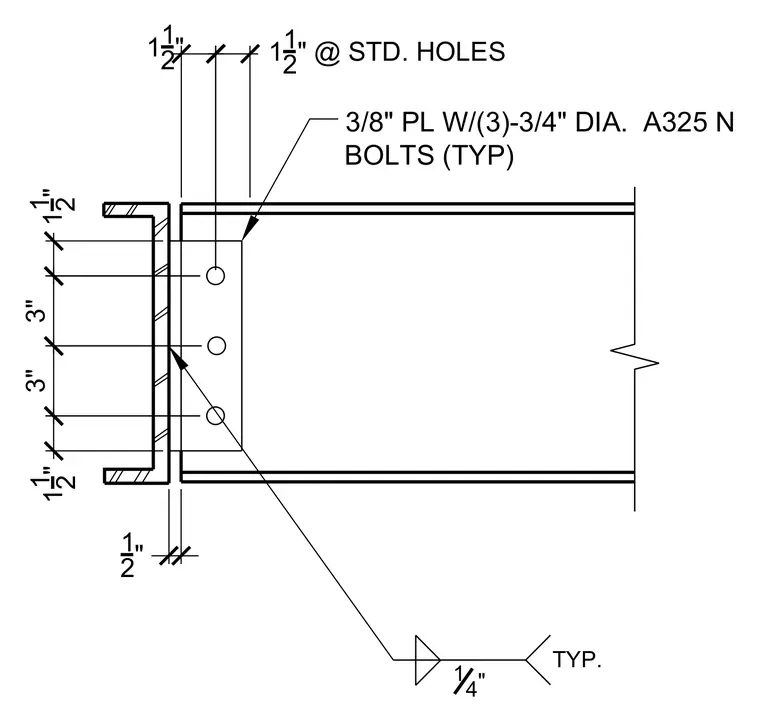

Two steel channels frame together utilizing a three-eighths inch plate connected by three three-quarter inch diameter ASTM A325-N bolts in standard holes. The connection incorporates a one-half inch clearance gap between the channel webs and features a one-quarter inch typical fillet weld.
3/8" PL W/(3)-3/4" DIA. A325 N BOLTS (TYP) 14" TYP. 11 2" 3" 3" 11 2" 1 1 2 " 1 1 2 " @ STD. HOLES 1 2 "
