Structural · S-H5NGT

Cold-Formed Metal Framing Joist and Deck Connection Details

Materials

Steel Metal (misc.)

Elements

Beams Decks

Connections

Deck Attachment

About this detail

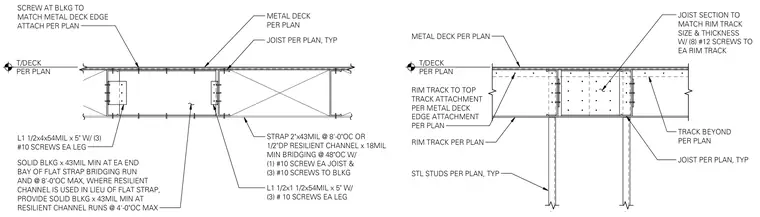

Cold-formed steel framing connections occur at a metal deck floor or roof assembly. The left detail features joists tied together with flat strap bridging or resilient channel bridging, supported by angles connected with number ten screws and solid blocking. The right detail features the rim track and joist section connection utilizing eight number twelve screws to each rim track, bearing over typical steel studs below. Metal deck attachment and top of deck elevations are sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
