Structural · S-H5EQ2

Steel Column Base Plate at Concrete Foundation Wall

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage HSS Connection Rebar Splice / Development

About this detail

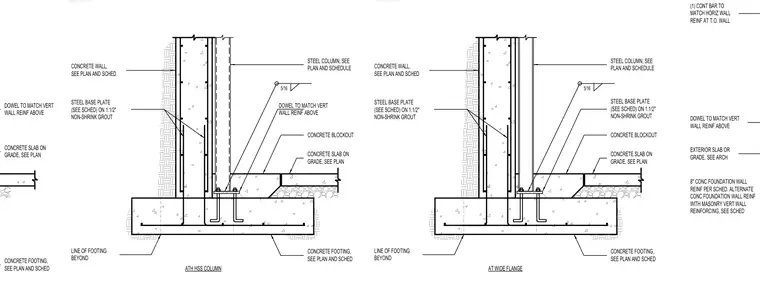

A steel column is supported by a steel base plate resting on one and one-half inches of non-shrink grout atop a concrete foundation wall and concrete footing. Vertical wall reinforcing dowels extend from the footing up through the concrete wall, supplemented by continuous horizontal reinforcing bars at the top of the wall. A concrete slab-on-grade abuts the foundation wall with a concrete blockout, while the steel column connects to the assembly with a five-sixteenth-inch fillet weld.
