Structural · S-H5DA6

Interior Cooler and Ambient Base Slab Transition Details

Materials

Elements

Walls Floors / Slabs Arches Insulation Site / Paving Reinforcing

About this detail

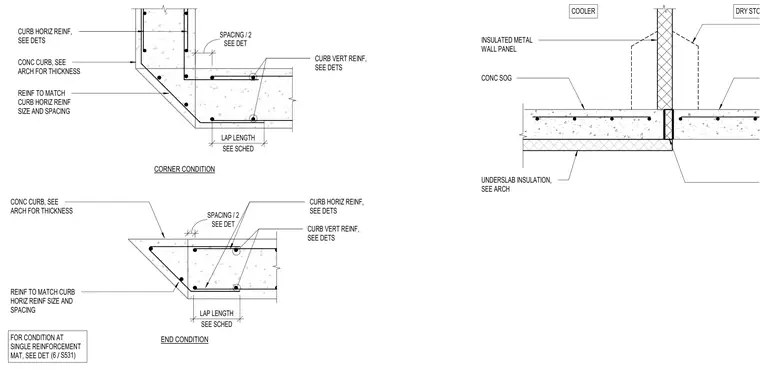

A structural transition between an interior cooler and dry storage area involves a concrete slab-on-grade bearing over underslab insulation. An insulated metal wall panel divides the cooler space, anchored above a concrete curb configured with horizontal and vertical reinforcement. Corner and end conditions detail the specific lap lengths and spacing for the curb reinforcement, with dimensions coordinated per the architectural drawings.
