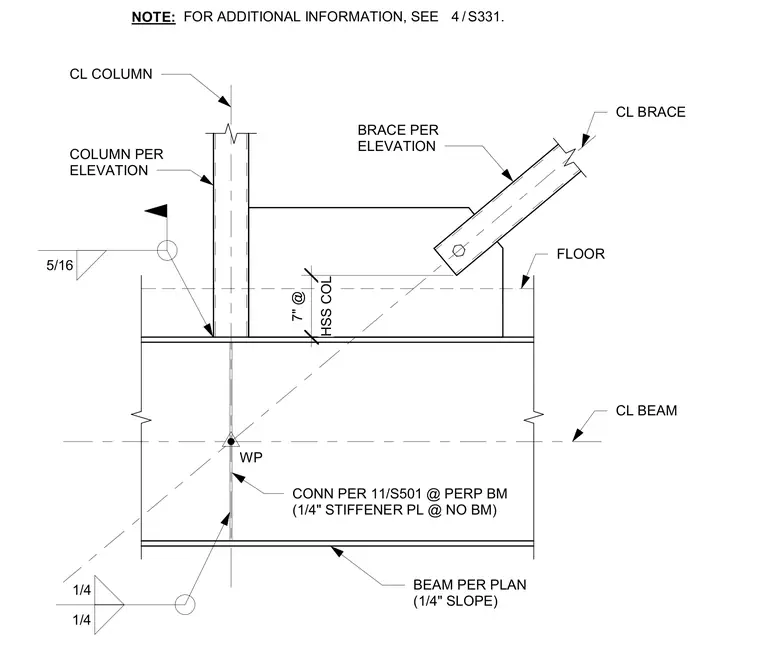

A hollow structural section column intersects a beam sized per plan with a one-quarter inch slope. A diagonal brace frames into a gusset plate welded to the column and beam. Fillet welds of five-sixteenth and one-quarter inch sizes secure the connection elements. A quarter-inch stiffener plate is provided where no beam is present.
BEAM PER PLAN (1/4" SLOPE) COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION WP CL BEAM CL COLUMN 5/16 HSS COL 7" @ NOTE: FOR ADDITIONAL INFORMATION, SEE . / 4 S331 FLOOR CONN PER 11/S501 @ PERP BM (1/4" STIFFENER PL @ NO BM) 1/4 1/4
