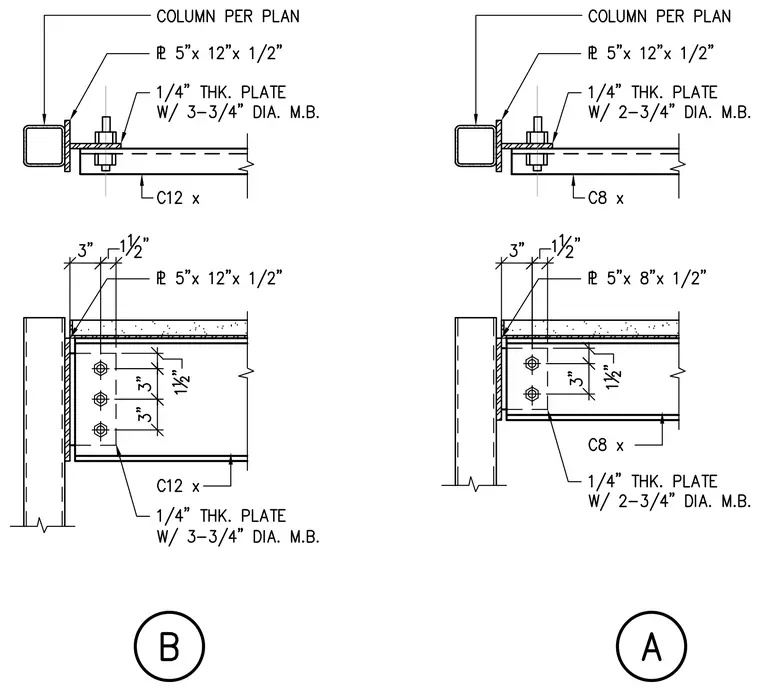

Detail A shows a C8 channel beam supported by a column per plan, featuring a 5-inch by 8-inch by 1/2-inch plate connected with a 1/4-inch thick plate and two 3/4-inch diameter machine bolts. Detail B shows a C12 channel beam supported by a column per plan, utilizing a 5-inch by 12-inch by 1/2-inch plate connected with a 1/4-inch thick plate and three 3/4-inch diameter machine bolts. Both details specify horizontal and vertical edge distances of 3 inches and 1 1/2 inches respectively for the bolt configurations.
