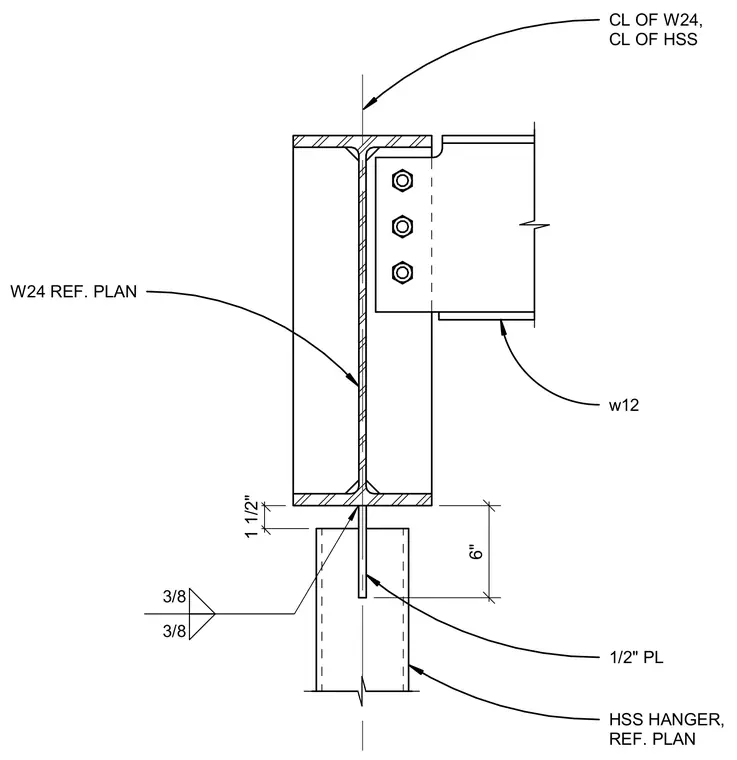

A hollow structural section stair hanger connects to a W24 wide flange beam using a half-inch plate welded with three-eighths inch fillet welds. A W12 member frames into the web of the W24 beam using a bolted shear tab connection. The hanger plate extends six inches down into the hollow structural section with a one-and-a-half-inch offset below the beam flange. Centerlines align with the W24 and hollow structural section members as referenced on plan.
CL OF W24, CL OF HSS W24 REF. PLAN HSS HANGER, REF. PLAN 1 1/2" 3/8 3/8 w12 6" 1/2" PL
