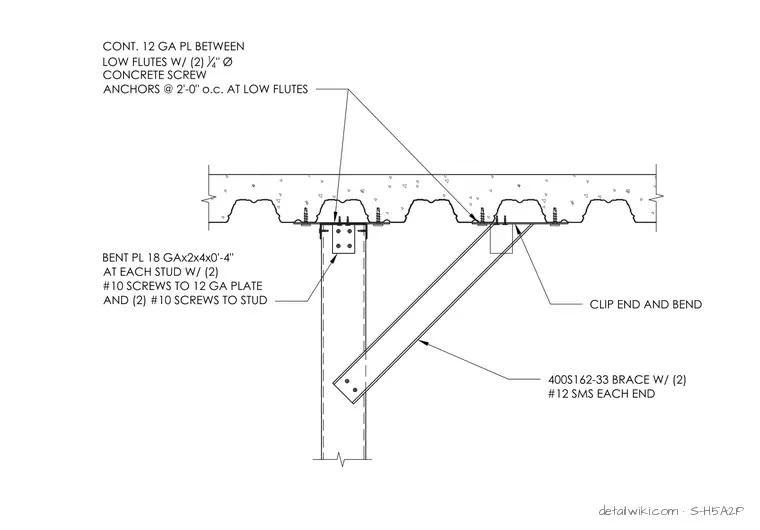

The assembly details a cold-formed steel stud connected at the top to a concrete slab on metal deck using a bent plate and screws. A continuous 12-gauge plate is secured between low flutes with concrete screw anchors. Additionally, a cold-formed steel brace (400S162-33) provides diagonal bracing from the stud to the metal deck above, attached via a clipped and bent end.
Text on the drawing
CONT. 12 GA PL BETWEEN LOW FLUTES W/ (2) 1 4 " Ø CONCRETE SCREW ANCHORS @ 2'-0" o.c. AT LOW FLUTES CLIP END AND BEND 400S162-33 BRACE W/ (2) #12 SMS EACH END BENT PL 18 GAx2x4x0'-4" AT EACH STUD W/ (2) #10 SCREWS TO 12 GA PLATE AND (2) #10 SCREWS TO STUD
