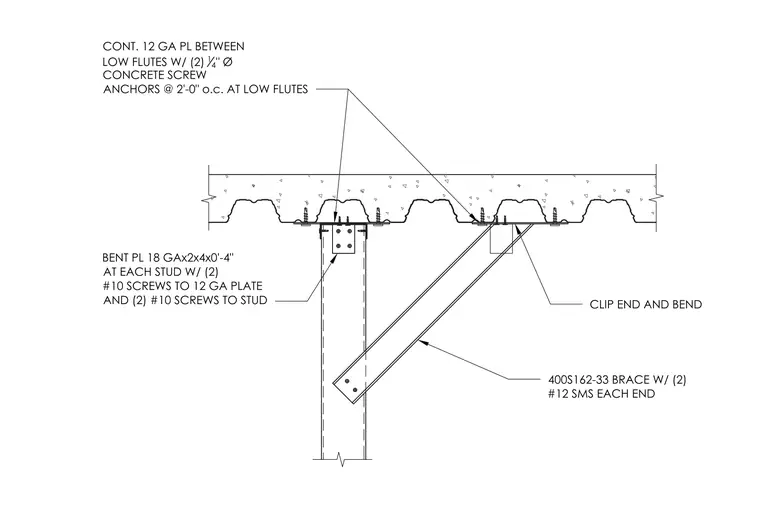

A continuous 12-gauge plate is secured between the low flutes of a concrete deck using two quarter-inch diameter concrete screw anchors spaced at two feet on center. A 400S162-33 cold-formed steel brace is clipped and bent at the end, fastened with two number 12 sheet metal screws at each end. An 18-gauge bent plate measuring two by four inches by four inches long connects each stud using two number 10 screws to the 12-gauge plate and two number 10 screws to the stud.
CONT. 12 GA PL BETWEEN LOW FLUTES W/ (2) 1 4 " Ø CONCRETE SCREW ANCHORS @ 2'-0" o.c. AT LOW FLUTES CLIP END AND BEND 400S162-33 BRACE W/ (2) #12 SMS EACH END BENT PL 18 GAx2x4x0'-4" AT EACH STUD W/ (2) #10 SCREWS TO 12 GA PLATE AND (2) #10 SCREWS TO STUD
