Structural · S-H4Y9E

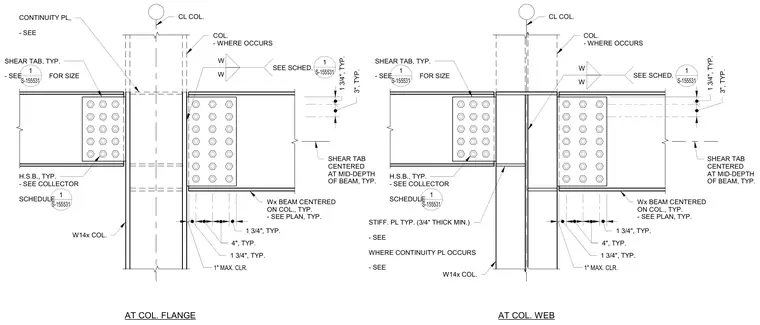

Beam Centered on W14x Column with Shear Tab Connection

Elements

Connections

About this detail

A wide-flange beam connects to a W14x column using a single plate shear tab centered at the mid-depth of the beam. High-strength bolts secure the beam web to the shear tab, sized per the collector schedule. Continuity plates and stiffener plates with a minimum three-quarter-inch thickness are provided where required by design. The assembly maintains a one-inch maximum clearance between the beam end and the column face.
