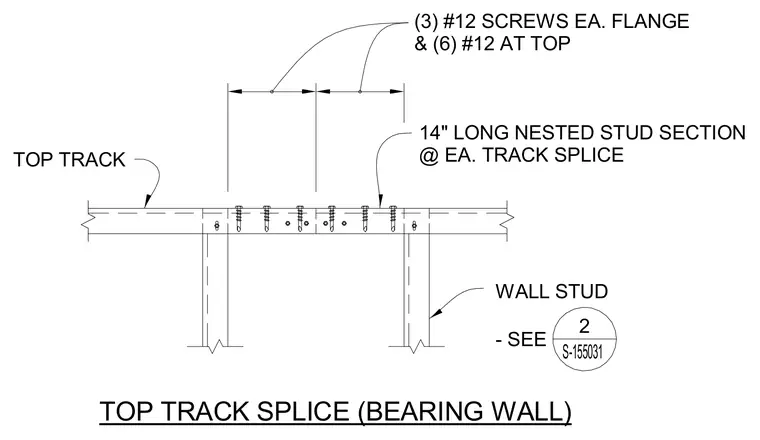

The bearing wall top track splice uses a fourteen-inch long nested stud section positioned at each track splice location. The connection is secured with three number twelve screws at each flange and six number twelve screws at the top track.
TOP TRACK 14" LONG NESTED STUD SECTION @ EA. TRACK SPLICE WALL STUD - SEE (3) #12 SCREWS EA. FLANGE & (6) #12 AT TOP TOP TRACK SPLICE (BEARING WALL) S-155031 2
