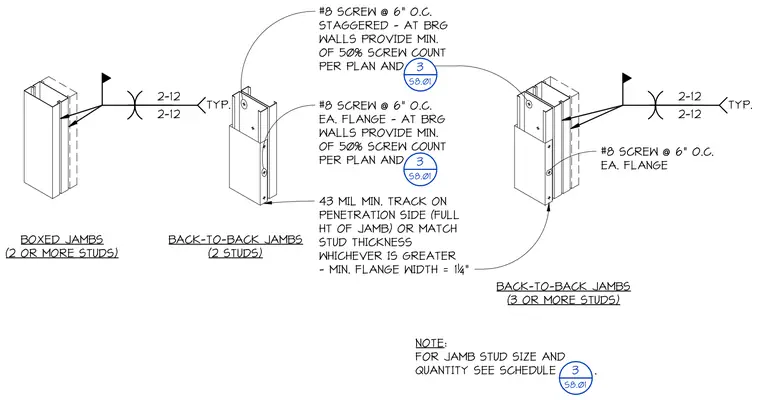

Boxed and back-to-back cold-formed steel jamb studs are fastened using number eight screws spaced at six inches on center staggered or on each flange depending on the configuration. At bearing walls a minimum of fifty percent of the screw count per plan is required along with a forty-three mil minimum track on the penetration side spanning the full height of the jamb or matching the stud thickness whichever is greater with a minimum flange width of one and one-quarter inches. Back-to-back jambs consist of two or three or more studs with typical screw fastenings. Jamb stud size and quantity are determined per the schedule.
2-12 2-12 #8 SCREW @ 6" O.C. STAGGERED - AT BRG WALLS PROVIDE MIN. OF 50% SCREW COUNT PER PLAN AND #8 SCREW @ 6" O.C. EA. FLANGE - AT BRG WALLS PROVIDE MIN. OF 50% SCREW COUNT PER PLAN AND BOXED JAMBS (2 OR MORE STUDS) BACK-TO-BACK JAMBS (2 STUDS) 43 MIL MIN. TRACK ON PENETRATION SIDE (FULL HT OF JAMB) OR MATCH STUD THICKNESS WHICHEVER IS GREATER - MIN. FLANGE WIDTH = 1¼" 2-12 2-12 #8 SCREW @ 6" O.C. EA. FLANGE BACK-TO-BACK JAMBS (3 OR MORE STUDS) TYP. TYP. NOTE: FOR JAMB STUD SIZE AND QUANTITY SEE SCHEDULE . 3 S8.01 3 S8.01 3 S8.01
