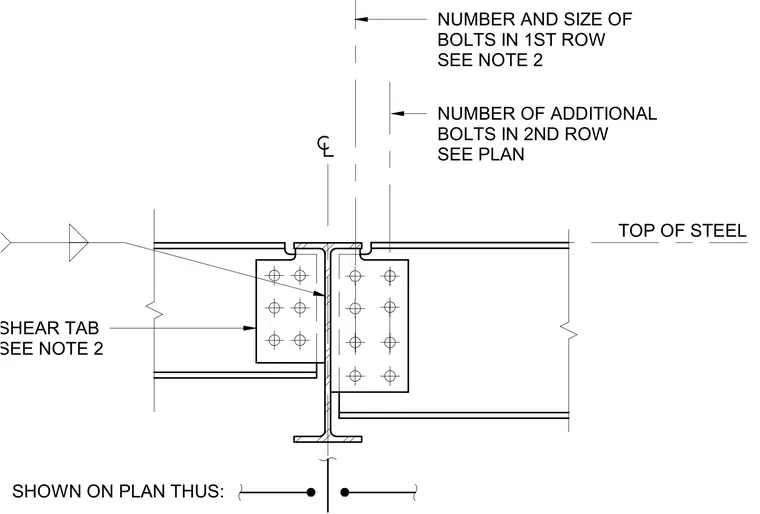

A supported steel beam connects to the web of a supporting steel beam using a welded shear tab and structural bolts. The shear tab is welded to the supporting beam web and bolted to the supported beam web with a specified number and size of bolts in the first and second rows per plan. The top of steel alignment is maintained across the connection with beam copes as needed.
SHEAR TAB SEE NOTE 2 TOP OF STEEL NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 SHOWN ON PLAN THUS: NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN
