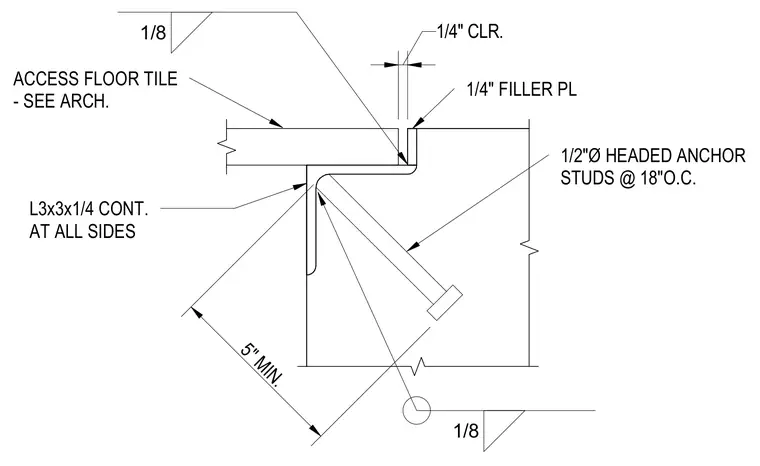

An access floor tile bears on a continuous 3x3x1/4-inch steel angle welded around all sides. The structural support angle is secured with one-half-inch diameter headed anchor studs spaced at eighteen inches on center. A one-quarter-inch filler plate and a one-quarter-inch clearance are provided at the edge assembly.
1/2"Ø HEADED ANCHOR STUDS @ 18"O.C. 1/4" FILLER PL 1/4" CLR. ACCESS FLOOR TILE - SEE ARCH. L3x3x1/4 CONT. AT ALL SIDES 5" MIN. 1/8 1/8
