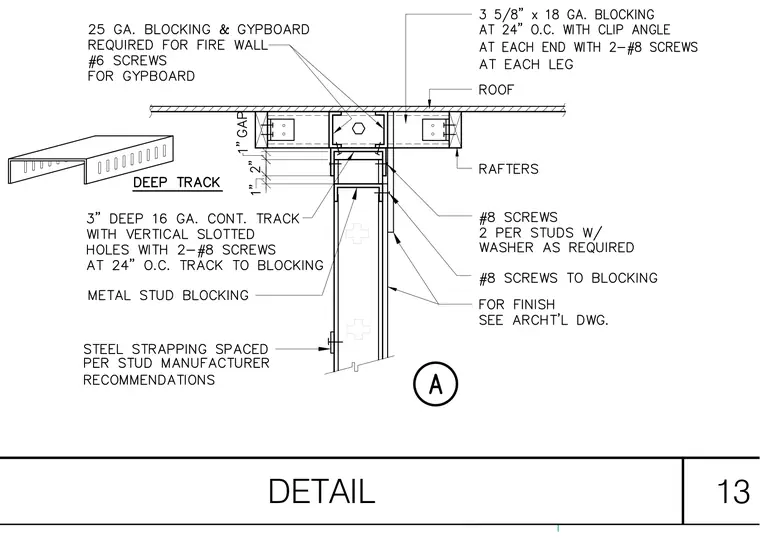

A structural cold-formed metal stud head of wall connection features a three-inch deep sixteen-gauge continuous track with vertical slotted holes secured with two number eight screws at twenty-four inches on center to backing. The assembly incorporates three and five-eighths inch by eighteen-gauge blocking at twenty-four inches on center with a clip angle at each end fastened using two number eight screws at each leg. A one-inch gap is provided beneath the roof rafters, with additional number eight screws with washers used per studs as required. Twenty-five gauge blocking and gypsum board are required for fire wall conditions, fastened with number six screws.
