Structural · S-H486B

Cast-In-Place Concrete Wall to Slab on Metal Deck Connection

Materials

Concrete Steel

Elements

Walls Floors / Slabs Decks Reinforcing

Connections

Rebar Splice / Development Deck Attachment

About this detail

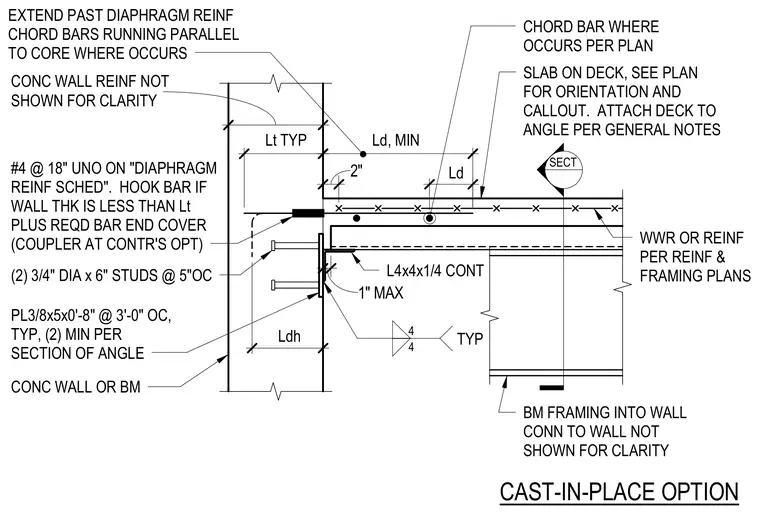

A slab on metal deck bears on a continuous L4x4x1/4 structural steel angle embedded into a concrete wall or beam. The angle is anchored using 3/8-inch by 5-inch by 0-foot 8-inch plates at three feet on center with a minimum of two plates per section of angle, welded with a quarter-inch fillet weld typical. Two 3/4-inch diameter by 6-inch shear studs at 5 inches on center are welded to the vertical leg of the angle and embedded in the concrete. Diaphragm reinforcement consists of number 4 bars at 18 inches on center, hooked if the wall thickness is less than the development length plus required bar end cover, with mechanical couplers used at the contractor's option.
